●측정원리
유도파 레이더에 의해 전달되는 고주파 마이크로파 펄스는 검출기 구성 요소 (와이어 케이블 또는 스틸 바)를 따라 전파되며, 측정 대상 유전체와 만날 때 유전율의 급격한 변화가 반사를 일으키기 때문에 펄스 에너지의 일부가 반사됩니다 펄스를 전송하고 반사하는 시간 간격은 측정 할 유전체로부터의 거리에 비례합니다.
상부 층의 유전 상수가 더 작고 하부 층의 유전 상수가 더 크고, 고주파 마이크로파 펄스가 검출기 구성 요소를 따라 전파하고 상부층 유전체와 만나는 경우, 컨테이너 내에 2 개의 다른 유전체가있다. 에너지는 유전체 상수가 더 작고 에너지의 대부분이 유전체의 상부 층을 관통하여 아래쪽으로 계속 전파하기 때문에이 유전체 표면에 의해 반사된다. 2 층 유전체 표면을 만날 때, 더 낮은 유전 상수 층이 더 크기 때문에 더 많은 에너지가 반사된다. 따라서 유도파 레이더는 두 개의 다른 유전체 표면을 측정 할 수 있습니다. 단, 유전체의 상층이 비 도체이거나 그 유전 상수가 하층의 유전체 상수보다 작은 경우입니다.
●제품특징
# 첨단 마이크로 프로세서와 독창적 인 EchoDiscovery 반향 처리 기술로 레벨 측정 유도파 레이더는 다양한 복잡한 작업 조건에 적용될 수 있습니다.
# 다양한 프로세스 연결 및 안테나 모양을 통해 GDRD5X 레이더 레벨 계측기 시리즈를 다양한 복잡한 작업 조건 및 애플리케이션에 사용할 수 있습니다.
# 고온, 고압 및 저 유전율 측정.
# 펄스 모드에서 레이더 레벨 장비는 매우 낮은 송신 전력을 가지며 다양한 금속 및 비금속 용기에 설치할 수 있으며 인체와 환경에 아무런 피해가 없습니다.
● SPECIFICATION

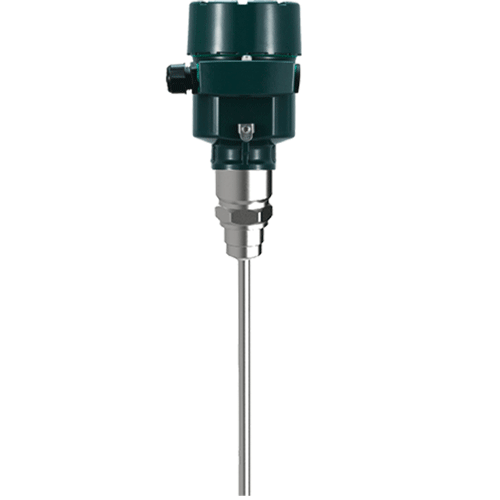

Model : HGW-51
Application : Liquid measurement in environment where there are volatile matters or vapors
Measuring range : 30m
Measurement Accuracy : ±10mm
Process Connection : G1½A / G2A / 1½NPT
Detector material : Stainless steel 316L /PTFE
Diameter of Steel Cable/Bar : Φ4mm / Φ6mm / Φ10mm
Process Temperature: -40 ~ 150°C
Process Pressure: -1.0 ~ 40bar
Display : LCD, 상태그래프,출력 등
Accuracy : ±0.25% of Range
Output Signal : DC 4-20mA / HART
Enclosure : Transmitter - IP65 ( NEMA 4X)
Power Supply : 2-Wire DC24V / 4-Wire(DC24V/AC220V)
특징 : 여러 특허 안테나, 항 응고 및 안티 증기.
적용 분야 : 휘발성 물질 또는 증기가있는 환경에서의 액체 측정 (예 : 코크스 산업); 복잡한 공정 및 조건으로 환경에 적용
● SPECIFICATION

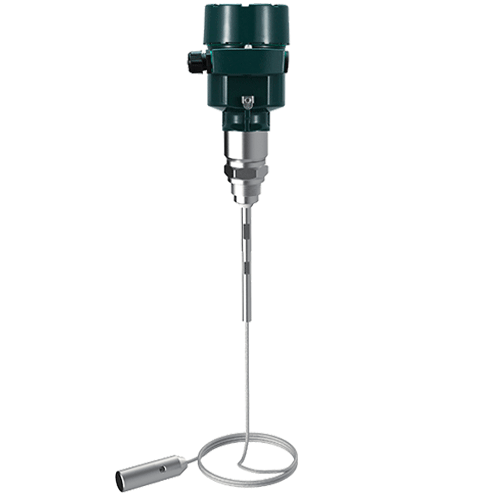

Model : HGW-52
Application : Shorter-range acid and alkali tanks
Measuring range : 6m
Measurement Accuracy : ±10mm
Process Connection: PTFE flange
Detector Material: PTFE
Diameter of Steel Bar: Φ10mm
Process Temperature: -40 ~ 150°C
Process Pressure: -1.0 ~ 16bar
Display : LCD, 상태그래프,출력 등
Accuracy : ±0.25% of Range
Output Signal : DC 4-20mA / HART
Enclosure : Transmitter - IP65 ( NEMA 4X)
Power Supply : 2-Wire DC24V / 4-Wire(DC24V/AC220V)
특징 : 모든 PTFE 봉인 된 안테나, 산, 알칼리 및 부식 저항
적용 분야 :보다 짧은 범위의 산성 및 알칼리성 탱크
● SPECIFICATION

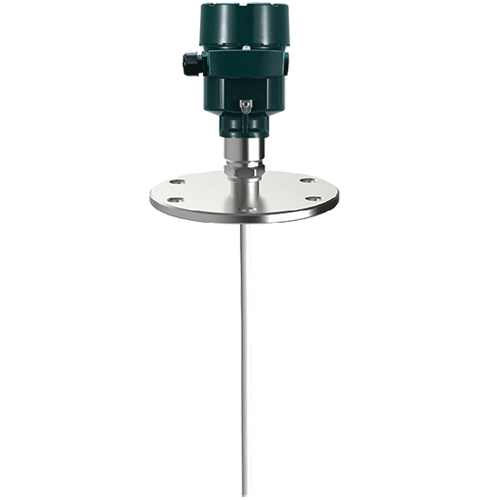

Model : HGW-53
Application: Able to adapt to measurement of short range, more vapor and low dielectric constant. Adapt to environment with complex process and conditions
Measuring range : 6m
Measurement Accuracy : ±10mm
Process Connection: G1½A / G2A
Detector Material: Stainless steel 316L / PTFE
Coaxial External Diameter: Φ28mm
Process Temperature: -40 ~ 150°C
Process Pressure: -1.0 ~ 16bar
Display : LCD, 상태그래프,출력 등
Accuracy : ±0.25% of Range
Output Signal : DC 4-20mA / HART
Enclosure : Transmitter - IP65 ( NEMA 4X)
Power Supply : 2-Wire DC24V / 4-Wire(DC24V/AC220V)
특징 : 동축 도파관 안테나로 작은 블라인드 존과 강한 에코 신호를 얻을 수 있습니다.
응용 분야 : 단거리, 증기 및 저 유전율의 측정에 적용 할 수 있습니다. 복잡한 공정 및 조건으로 환경에 적응
● SPECIFICATION

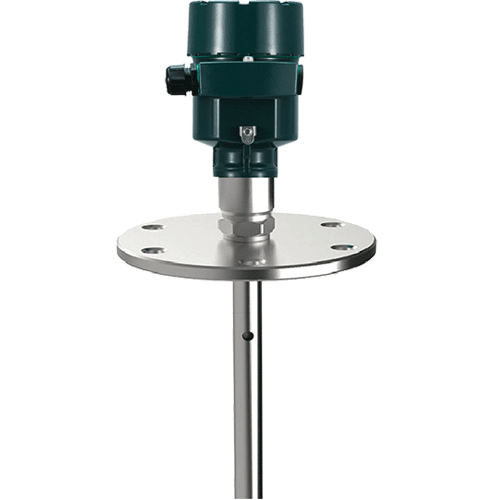

Model : HGW-54
Application : Liquid measurement, high temperature, high pressure, complex process and conditions
Measuring range : Cable : 30m / Bar : 6m
Measurement Accuracy : ±10mm
Process Connection : G1½A / G2A / 1½NPT
Detector Material : Stainless steel 316L / ceramics
Diameter of Cable/Bar : Φ4mm / Φ6mm / Φ10mm
Process Temperature : -40 ~ 150°C
Process Pressure : -1.0 ~ 16bar
Display : LCD, 상태그래프,출력 등
Accuracy : ±0.25% of Range
Output Signal : DC 4-20mA / HART
Enclosure : Transmitter - IP65 ( NEMA 4X)
Power Supply : 2-Wire DC24V / 4-Wire(DC24V/AC220V)
특징 : 열 분산과 함께 안내 파도 레이더 안테나.
응용 분야 : 액체 측정, 고온, 고압, 복잡한 공정 및 조건.
● SPECIFICATION

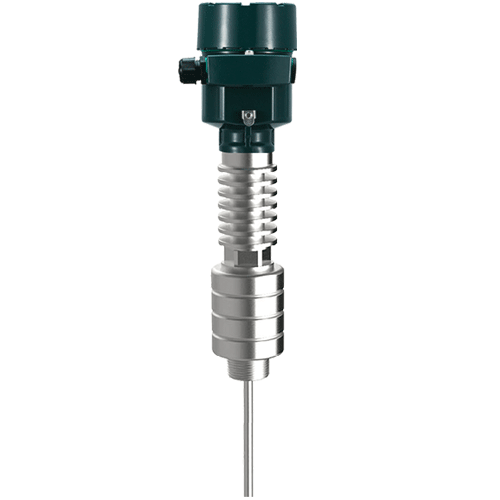

Model : HGW-55
Application : Liquid measurement, high temperature, high pressure, complex process and conditions
Measuring range : Cable : 30m / Bar : 6m
Measurement Accuracy : ±10mm
Process Connection : G1½A / G2A / 1½NPT
Detector Material : Stainless steel 316L / ceramics
Diameter of Cable/Bar : Φ4mm / Φ6mm / Φ10mm
Process Temperature : -200 ~ 150°C
Process Pressure : Vacuum ~ 400bar
Display : LCD, 상태그래프,출력 등
Accuracy : ±0.25% of Range
Output Signal : DC 4-20mA / HART
Enclosure : Transmitter - IP65 ( NEMA 4X)
Power Supply : 2-Wire DC24V / 4-Wire(DC24V/AC220V)
응용 프로그램 : 높은 온도와 압력을 견딜 수있는 스테인레스 스틸 316L / 세라믹 안테나.
응용 분야 : 액체 측정, 고온, 고압, 복잡한 공정 및 조건.
● SPECIFICATION
Model : HGW-56
Features: Multi-cable guided wave antenna which can achieve stronger echo signal
Application : Measurement of low dielectric constant, solid, complex process and conditions
Measuring range : Cable : 30m / Bar : 6m
Measurement Accuracy : ±10mm
Process Connection : G1½A / G2A / 1½NPT
Detector Material : Stainless steel 316L / PTFE
Diameter of Cable/Bar : Φ4mm / Φ8mm
Process Temperature : -40 ~ 150°C
Process Pressure : -1.0 ~ 40bar
Display : LCD, 상태그래프,출력 등
Accuracy : ±0.25% of Range
Output Signal : DC 4-20mA / HART
Enclosure : Transmitter - IP65 ( NEMA 4X)
Power Supply : 2-Wire DC24V / 4-Wire(DC24V/AC220V)
특징 : 강한 에코 신호를 얻을 수있는 멀티 케이블 유도파 안테나.
응용 분야 : 저 유전율, 고체, 복잡한 공정 및 조건 측정.
